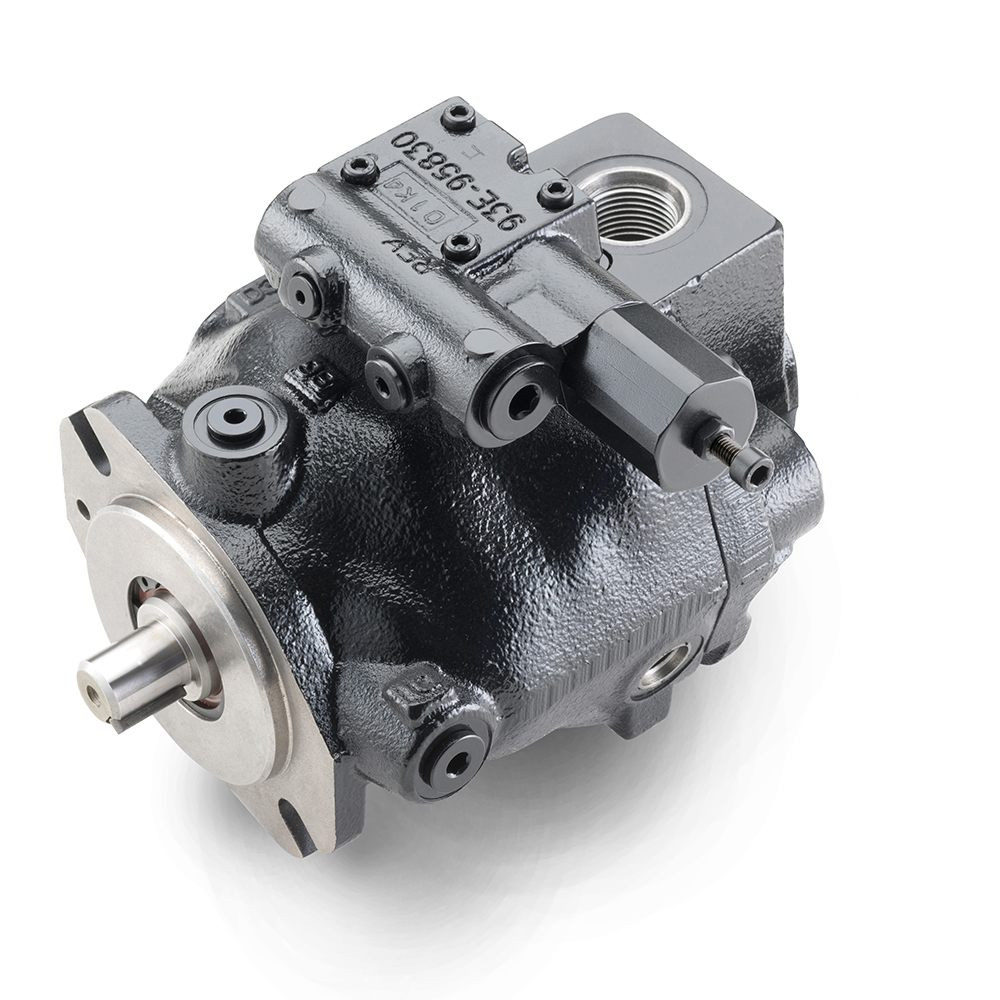

Parker PD075PC02SRS5BAMTS0000000-18HP Axial Piston Pump Variable Displacement
Pump Series: PD - Industrial Version
Displacement: 75 cc/rev (4.58 in/rev)
Horsepower: 18 HP
Type: Open Circuit
Mounting and Ports: SAE C 2-Bolt Pilot, SAE 25mm & SAE 50mm code 61 Flange Work Ports, w/ SAE 4 & SAE 10 Aux Ports
Shaft: Keyed Shaft - SAE C 32-1
Rotation: Clockwise from Shaft End
Control Options: Pilot Operated Pressure Limiter with Mechanical Adjustment and SAE 4 Vent Port, Torque Limiter Control
Port Orientation: Side Ports
Port Type: Flange Ports
Other Details
Port Type:
Flange Ports
Port Orientation:
Side Ports
Control Options:
Pilot Operated Pressure Limiter with Mechanical Adjustment and SAE 4 Vent Port, Torque Limiter Control
Rotation:
Clockwise from Shaft End
Shaft:
Keyed Shaft - SAE C 32-1
Mounting and Ports:
SAE C 2-Bolt Pilot, SAE 25mm & SAE 50mm code 61 Flange Work Ports, w/ SAE 4 & SAE 10 Aux Ports
Type:
Open Circuit
Horsepower:
18 HP
Displacement:
75 cc/rev (4.58 in/rev)
Pump Series:
PD - Industrial Version
